Matching Methods Gallery

This page shows the matching results for all available methods. All images were generated using the same input pair (5616x3744 pixel photograph and simulated image) on CPU (M4 Pro MBP).

Any method supported by vismatch (70+ models) can be used. See Usage for details.

Built-in Methods (No Extra Dependencies)

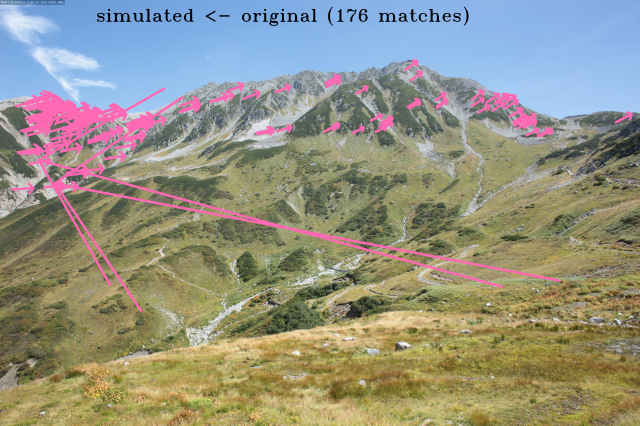

AKAZE

• Time: ~1 sec | Matches: 176

SIFT

• Time: ~4 sec | Matches: 331

LightGlue-based Methods (Lightweight)

These methods can handle full-resolution images efficiently.

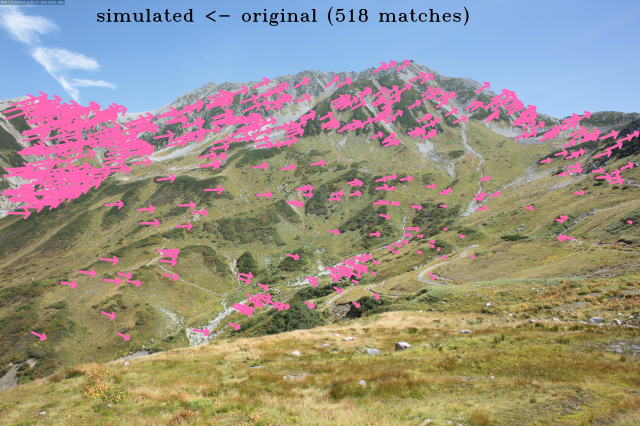

SIFT-LightGlue

• Time: ~3 sec | Matches: 518

SuperPoint-LightGlue

• Time: ~4 sec | Matches: 962

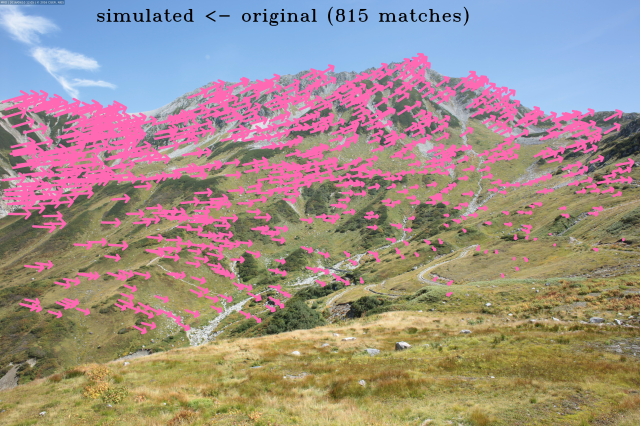

ALIKED-LightGlue

• Time: ~6 sec | Matches: 815

Dense Matching Methods (High Match Count)

These methods automatically resize images to 640px when resize is not specified to prevent out-of-memory errors.

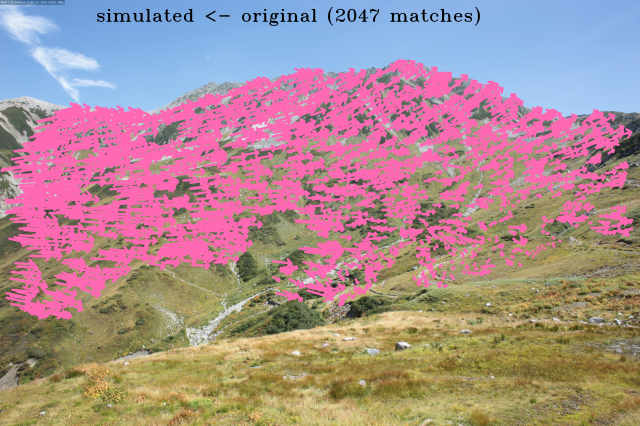

Tiny-RoMa

• Time: ~2 sec | Matches: 2047

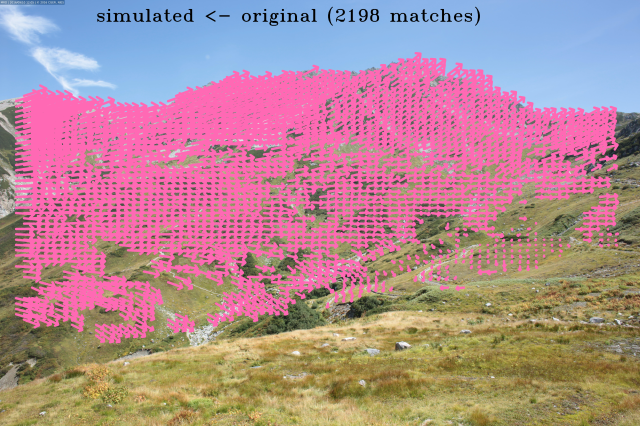

LoFTR

• Time: ~2 sec | Matches: 2198

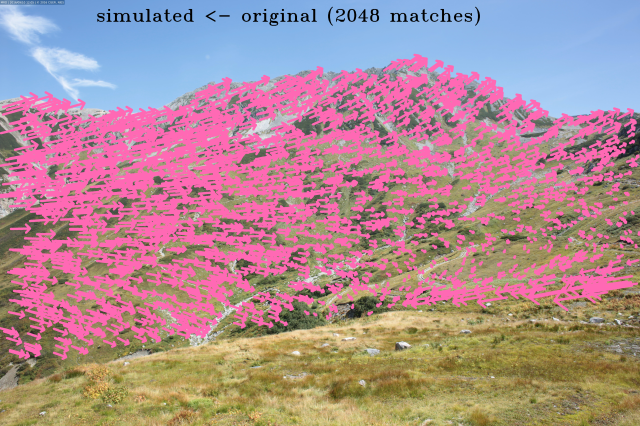

UFM

• Time: ~10 sec | Matches: 2048

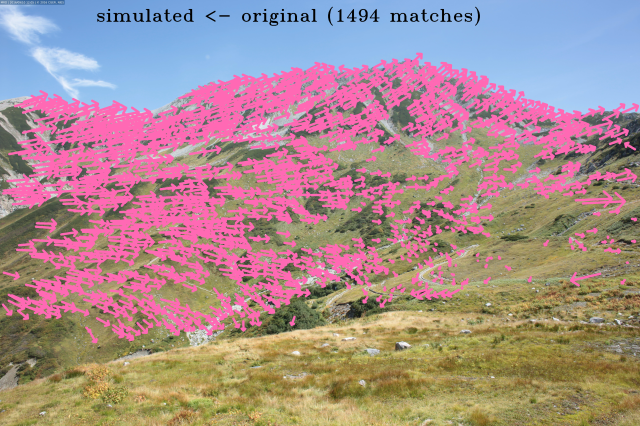

RDD

• Time: ~14 sec | Matches: 1494

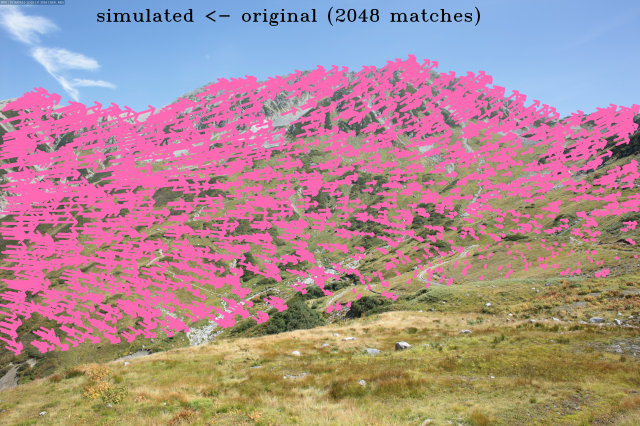

RoMa

• Time: ~23 sec | Matches: 2048

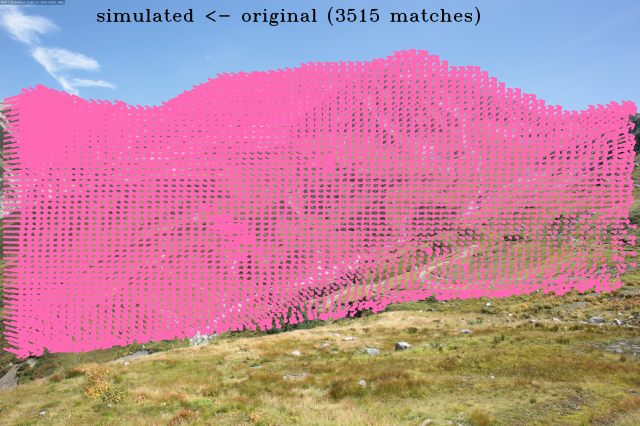

MAST3R

• Time: ~327 sec | Matches: 3515

Cross-Modal Methods (Robust to Appearance Changes)

These methods are designed for matching across different modalities, seasons, and resolutions. This includes MiniMa-based and MatchAnything-based methods.

MiniMa-SuperPoint-LightGlue

• Time: ~29 sec | Matches: 973

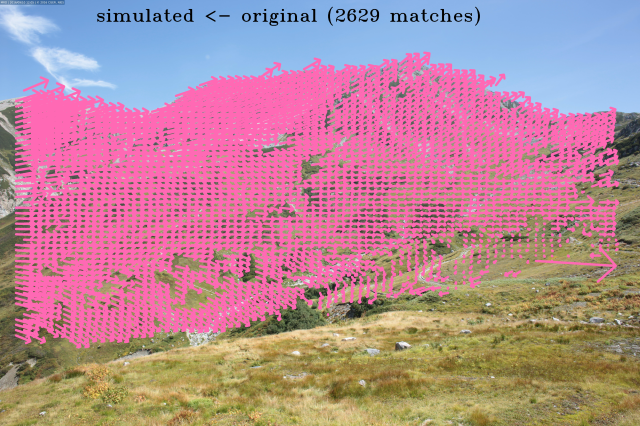

MiniMa-LoFTR

• Time: ~3 sec | Matches: 2629

MiniMa-RoMa

• Requires CUDA (large model). Use minima-roma-tiny for CPU.

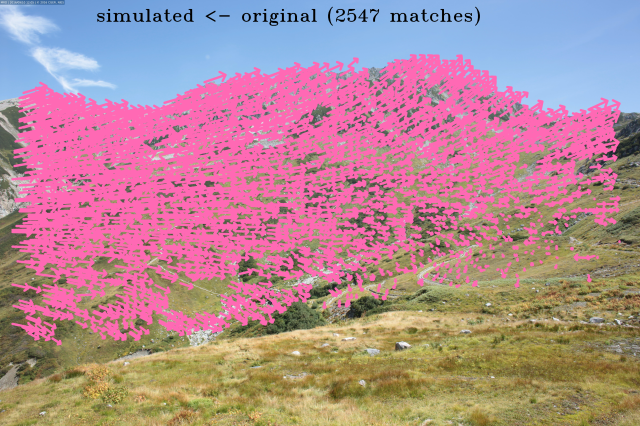

MatchAnything-ELoFTR

• Time: ~2 sec | Matches: 2547

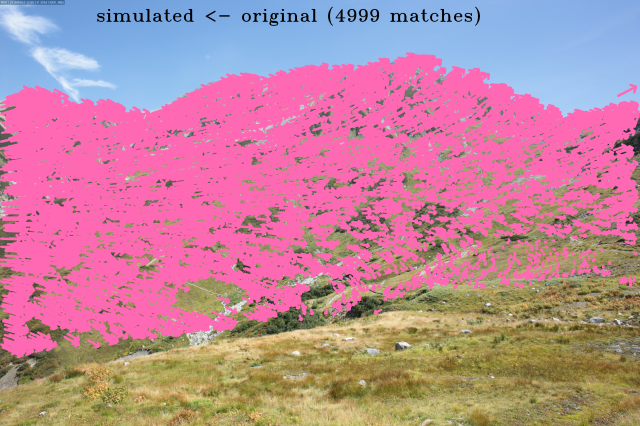

MatchAnything-RoMa

• Time: ~23 sec | Matches: 4999

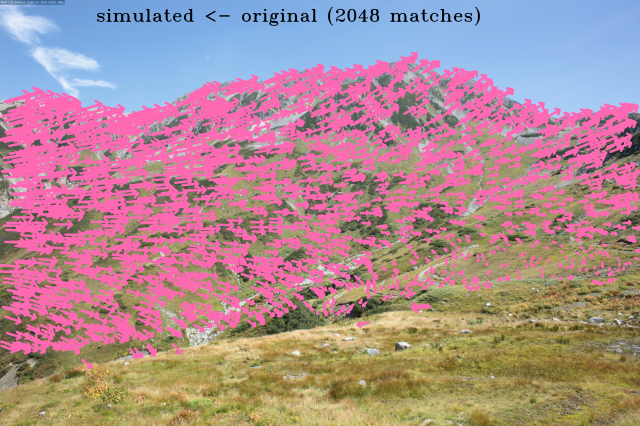

GIM-DKM

• Time: ~34 sec | Matches: 2048
